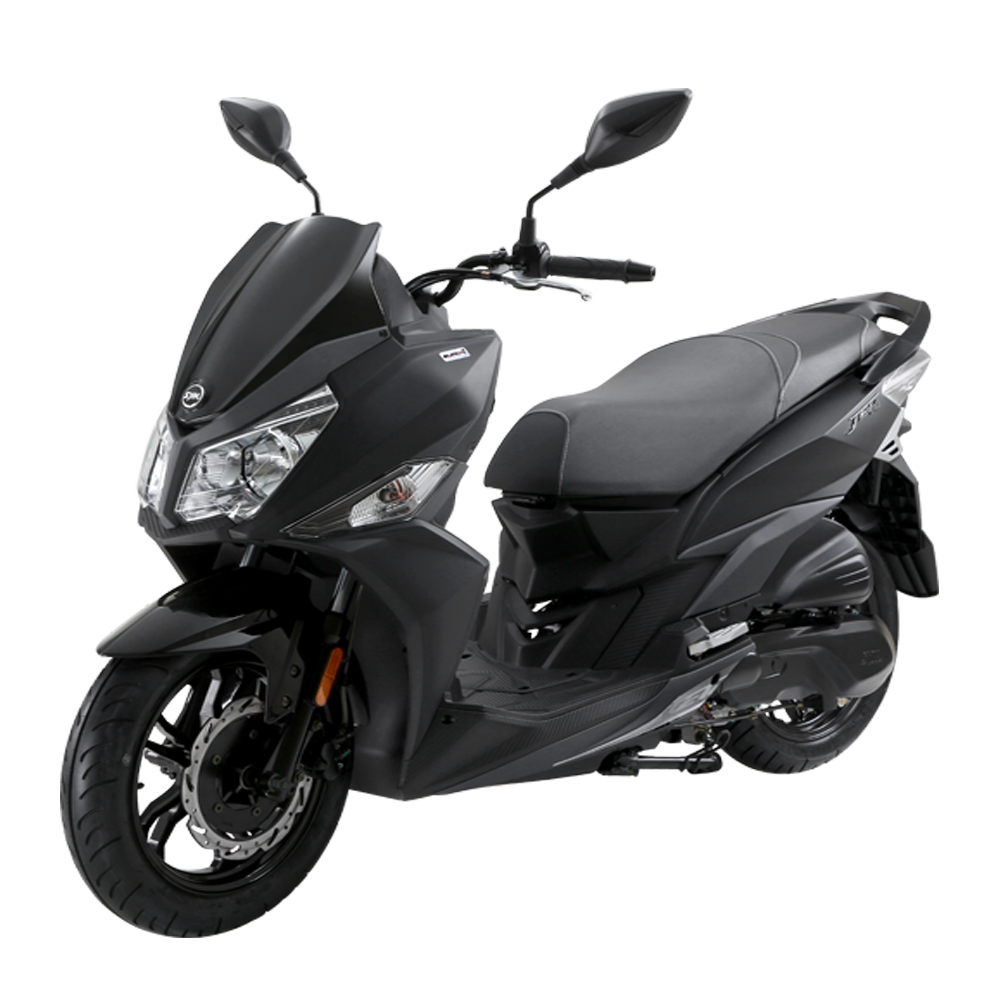

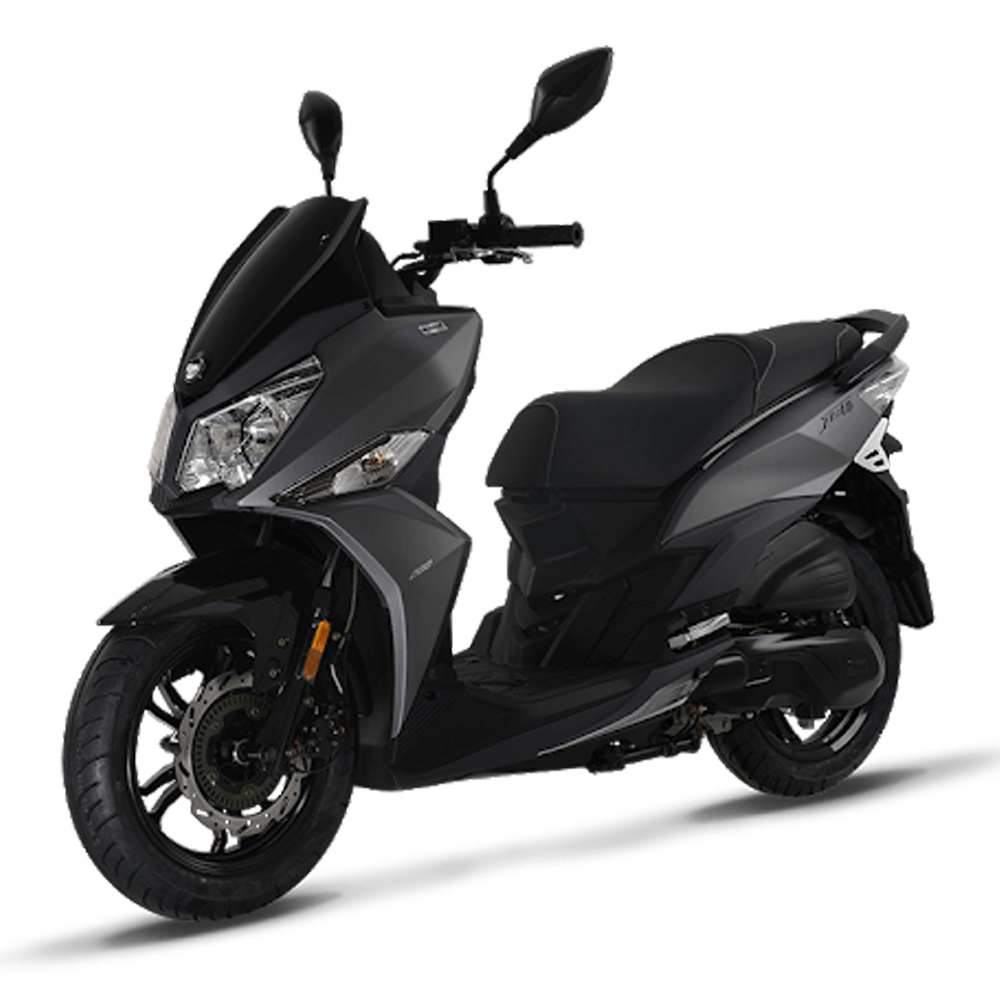

SYM JET 14 200I

ENGINE :
Displacement (CC)               : 200cc
Cooling System                    : Air Cooling
Engine Mode                         : 4-Stroke Engine, Single Cylinder
Bore x Stroke                        : 61.0 x 57.8
Max. Power                            : 8.8kW / 8000rpm
Max Torque                            : 12.2Nm / 6000rpm
Compression Ratio              : 10.1 : 1
Fuel System                          : EFI (Fuel Injection)
Valve Train                            : OHC
Ignition                                  : Transistorized Coil Ignition
Starter                                   : Electric

Lubrication System            :
Forced Circlulation & Splashing
Transmission                         : CVT
Exhaust Emision                 : Euro 4
Weight (KG)                         : 134KG
Seat Height (mm)               : 780mm
Overall Length (mm)          : 1990mm
Overall Width (mm)            :
730mm

Overall Height                      :
1115mm

WheelBase                              : 1350mm
Frame Type                             : Pipe Under Done
Front Suspension                : Telescopic Fork
Rear Suspension                  : Telescopic Fork Double
Front Tyre                              : Tubeless 100/90-14
Rear Tyre                                  : Tubeless 100/80-14
Front Brake                             : 260mm Disc, Non-Asbestos Pad
Rear Brake                            : 220mm Disc, Non-Asbestos Pad
Fuel Capacity (L)                 : 7.5L
Battery                                  : 12V6Ah

Colors Available :

STEEL GREY | CEDAR BROWN | JET BLACK
