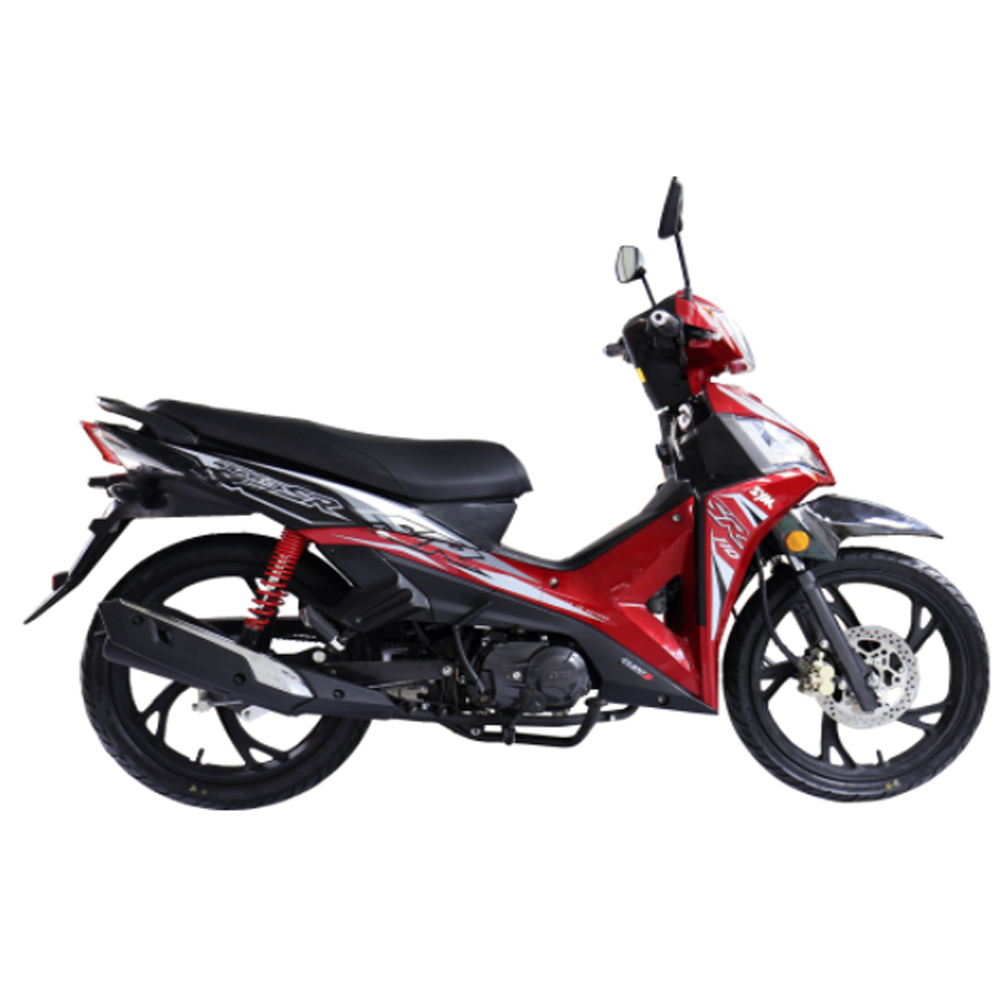

SYM BONUS SR 110

ENGIN :
Enjin Type                                    : Air-Cooled, Single Cylinder
Valve Arrangment                      : SOHC, 2 Valves

Displacement                              : 110cc
Bore & Stroke                              : 50mm x 55mm
Compression Ratio                     : 9.1 : 1
Rated Output                               : 5.3kW @ 7500rpm
GearBox                                        : 4-Speed (Rotary)
Lubrication                                   : Forced And Wet Sump
Clutch                                            : Auto Centrifugal Clutch
Certification                                 : Euro 3
Starting                                         :Kick & Electric Starter
Ignition                                         : C.D.I Electric Ignitio

Frame                                            : Steel Pipe Structure
Front Suspension                        :
Telescopic Focks, Travel 100mm
Rear Suspension                         :
Telescopic Coil Spring Oil Damped, Travel 69mm
Front Brake                                  :
Brake Disc
Rear Brake                                    : Drum Brake
Front Wheel                                 : 1.6 x 17(Alloy Sport Rims)
Rear Wheel                                  : 1.6 x 17(Alloy Sport Rims)
Front Tire                                      :
70/90-17 (Tubeless)

Rear Tire                                       :
80/90-17 (Tubeless)

WheelBase                                     : 1240mm
Ground Clearance                        : 125mm
Weight                                          : 103KG
Fuel Capacity                                 : 4L

Battery                                          : 12V, 5Ah-Maintainence Free (MF)

Colors Available :

RED | BLUE | BLACK
